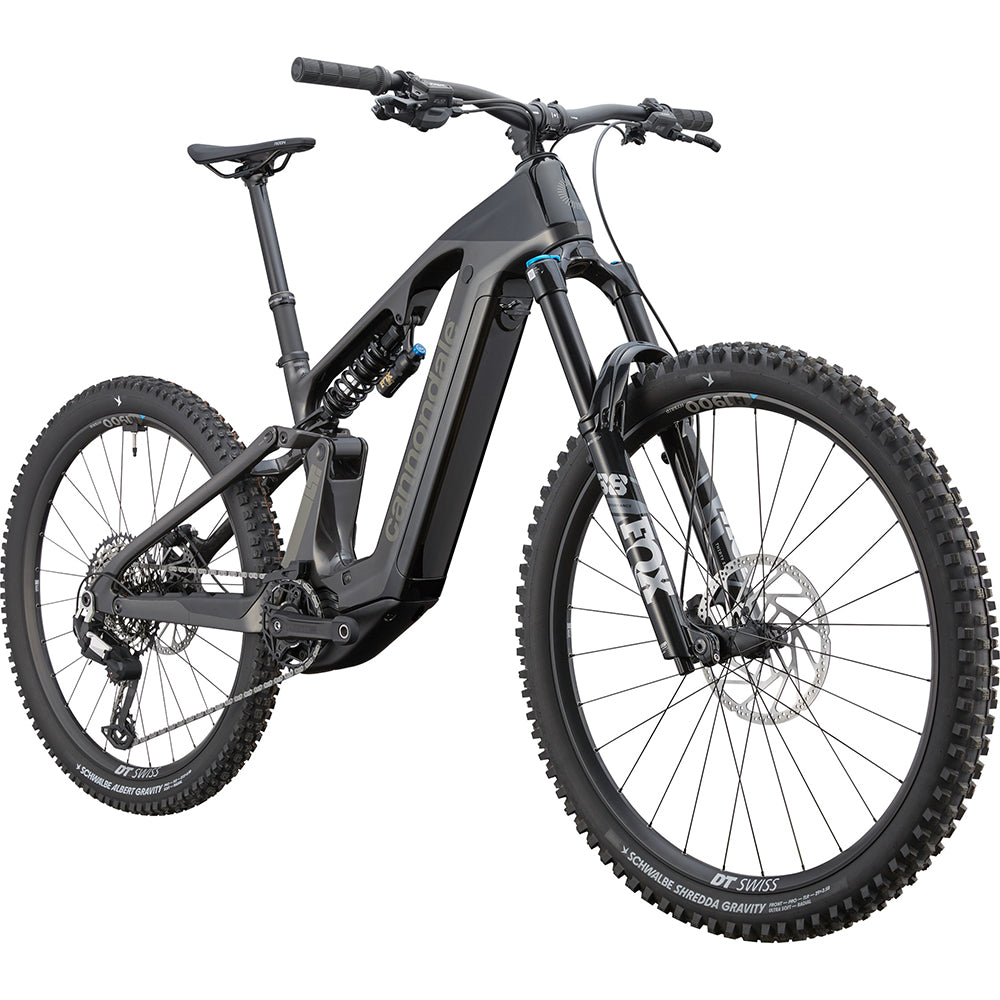

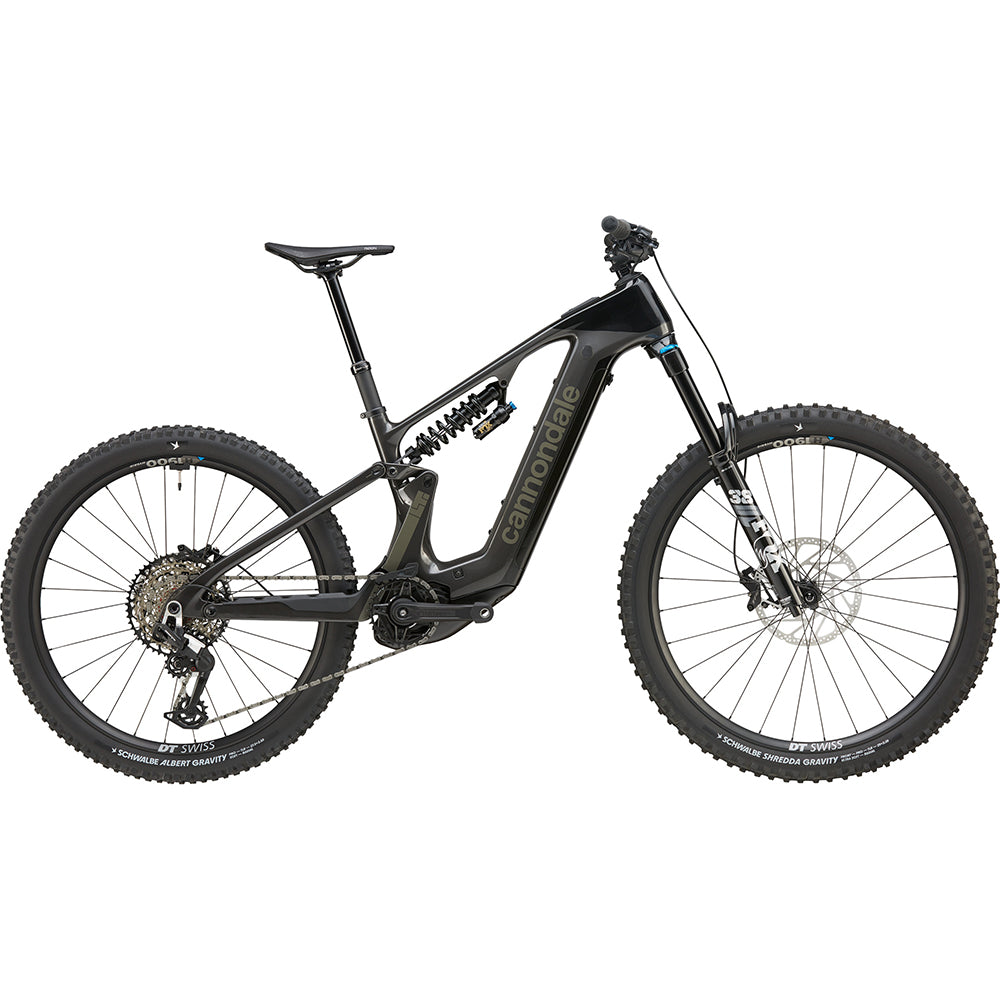

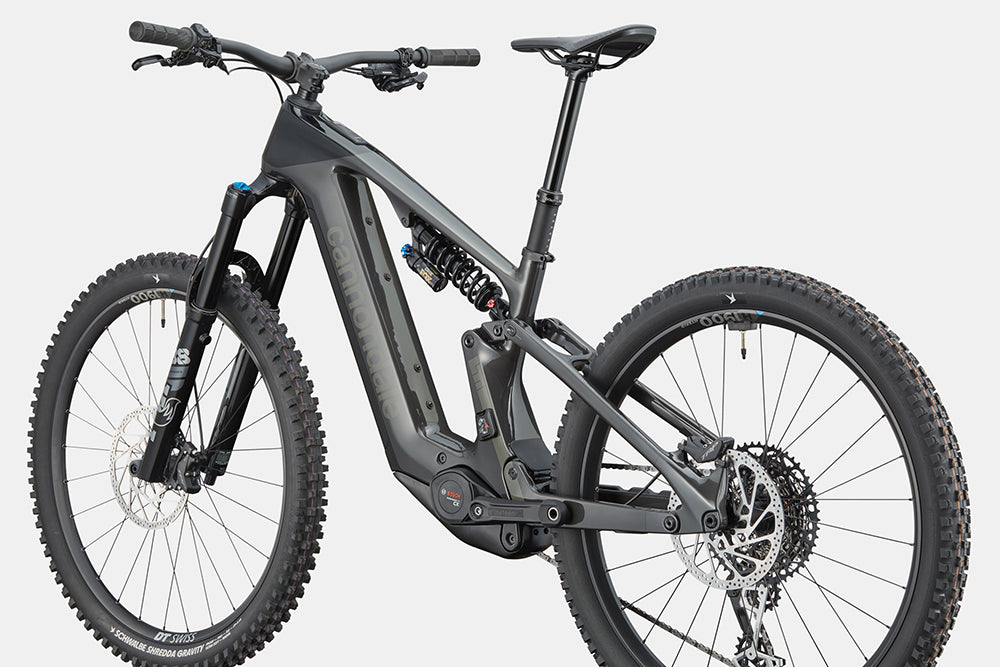

CANNONDALE MOTERRA LT 1

Point and Play.

The Moterra LT thrives in chaos. Point it whererever you want to go, power through climbs, and tear down descents like a moshpit in motion. With 170mm front, 165mm rear travel, a mullet wheelset, and the Bosch 800Wh battery, it plays hard, all day long.

The Strong, Silent Type.

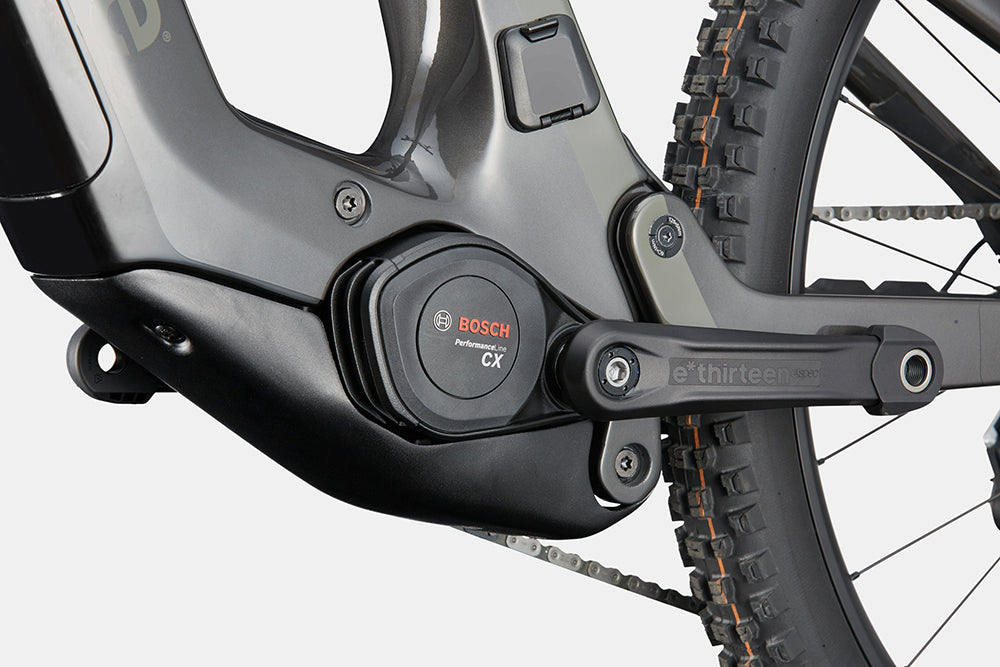

Bosch’s most powerful motor, the Performance CX, is your stealthy sidekick, delivering huge power and serious torque, smoothly and silently. With a removable 800Wh battery integrated into the frame, you can tackle endless climbs and explore all day while keeping things low-key for both you and your riding crew. The Bosch mini remote gives you command on-demand, putting all the control right at your fingertips.

Takes Hits, Not Prisoners

A new full-carbon frame that, along with refined e-system small parts, saves almost 1000g over the previous version, plus a 170mm Fox Performance 38 fork and 165mm DHX coil shock, give the Moterra LT the hard-charging agility to rip though whatever you throw at it.

Specifications

Frame Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery
Rear Shock Fox DHX Performance, Coil, 2 pos adj, 230×65mm
Fork Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15×110mm Kabolt thruaxle, tapered steerer, 44mm offset
Drive Unit Bosch Performance Line CX 250W
Battery Bosch PowerTube 800Wh

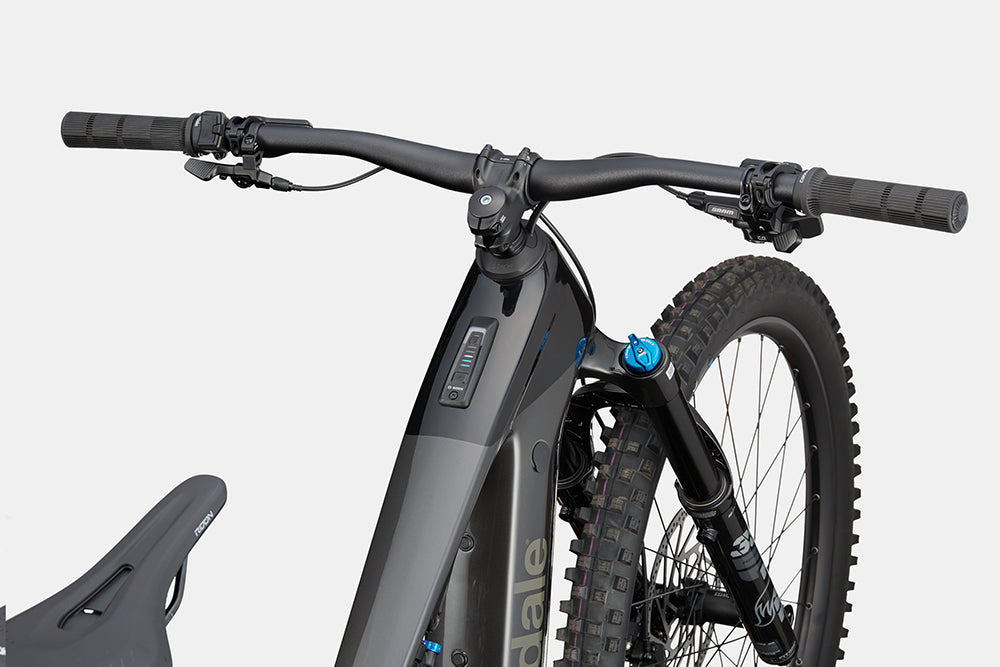

Display Top Tube System Controller w/ Mini Remote
Charger Bosch 4A
Rims DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Hubs (F) DT Swiss 370, 15×110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12×148mm thru-axle, 6-bolt
Spokes DT Swiss Competition, straight pull
Tires (F) Schwalbe Shredda Front, 29×2.5", Radial casing, Addix Ultra Soft Foldable / (R) Schwalbe Albert, 27.5×2.5", Radial casing, Addix Soft Foldable
Pedals N/A
Crank e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T

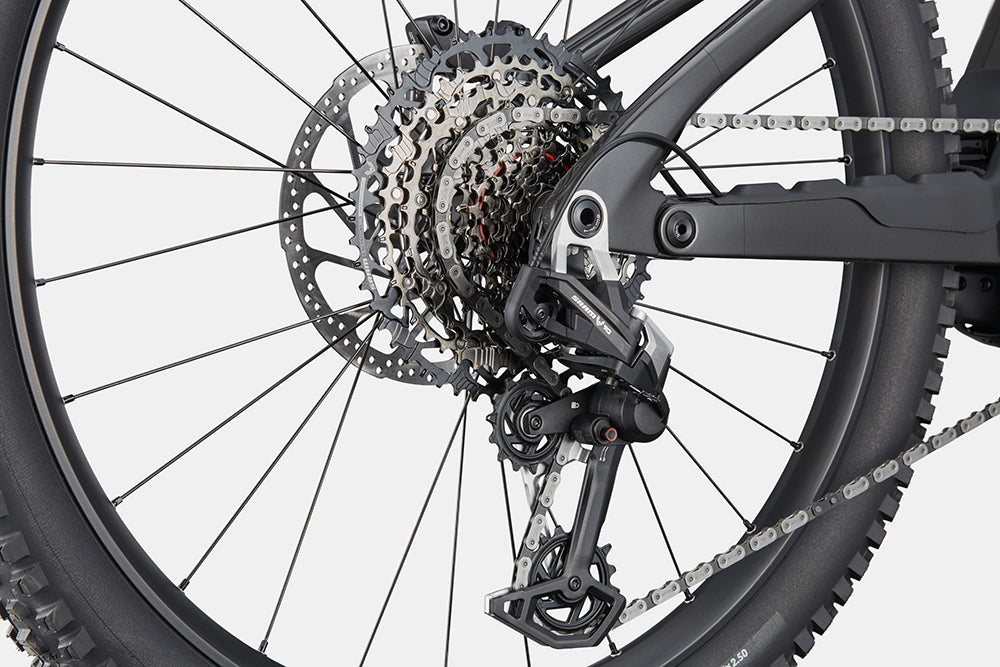

Chain SRAM Eagle 70, 12-speed
Rear Cogs SRAM Eagle 70, 12-speed
Rear Derailieur SRAM Eagle 90, T-Type
Shifters SRAM Eagle 90, T-Type, 12-speed
Handlebar Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips Cannondale TaperRidge
Stem Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Brakes TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors
Brake Levers TRP EVO Pro hydraulic disc
Saddle Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Sizes S, M, L, XL
Colour Black (BLK)
Extras Tubeless Valve Stems, Bosch PowerMore range extender compatible
